Big cleaning power in a tough new package.

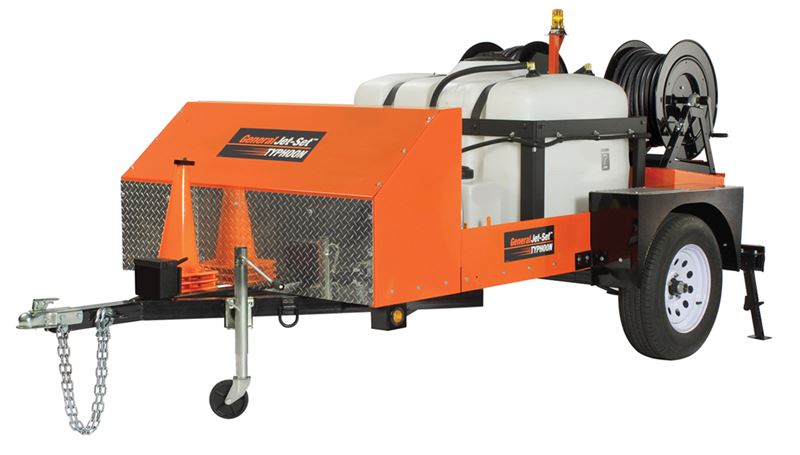

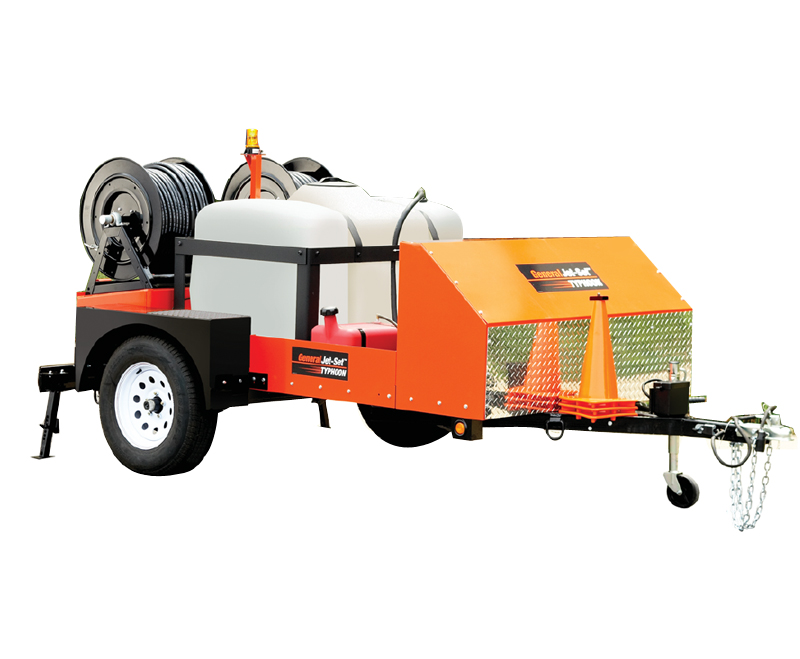

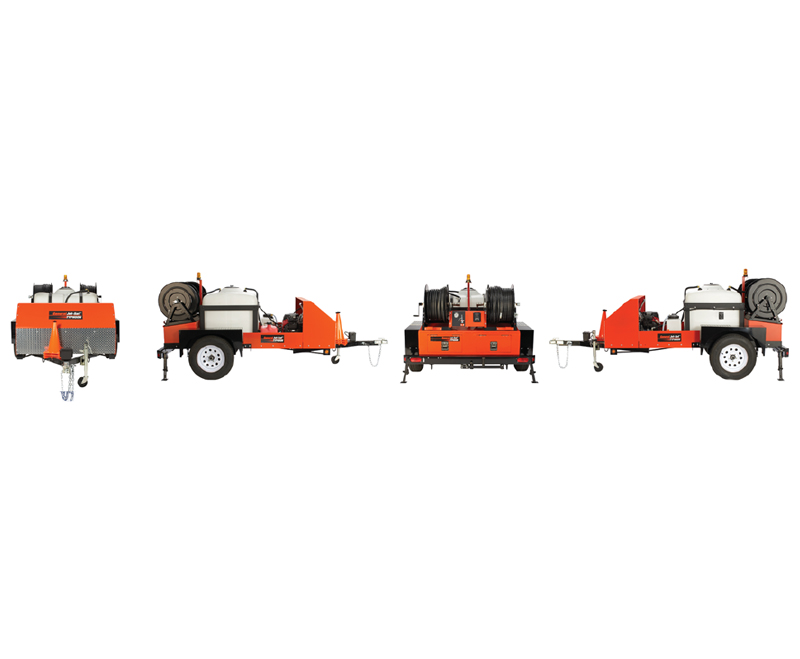

The JM-2512 Typhoon® trailer jet is ideal for clearing big lines or remote jobs far from a water source. Twelve gallons of water pulsates down the line every minute at a powerful 2500 psi to blast lines clear of grease, sediment, and debris. The 200 gallon holding tank carries enough water to handle remote applications where access to water is limited.
Unit of Measure

Specifications

Brands

 N/A Typhoon®

Pump

 N/A Triplex with Vibra-pulse®

Pressure

 N/A 2500 psi

Motor Power

 N/A 24 hp

Reel Capacity

 N/A 400 ft. x 1/2 in. hose

Weight

 N/A 1900 lb (Empty) 3300 lb (Loaded)

Length

 N/A 153 in.388 cm

Width

 N/A 82 in.208 cm

Height

 N/A 65 in.165 cm

Engine

 N/A 690 cc Honda with Low oil shut off, electric start, and V-belt reducer

Tank Capacity

 N/A 200 gal

Jet Hose Reel

 N/A Electric variable speed rewind, swivel, 400 ft. x 1/2 in. hose capacity

Supply Hose Reel

 N/A Manual, swivel, drag brake, and reel lock, 150 ft. x 3/4 in. capacity

Safety Features

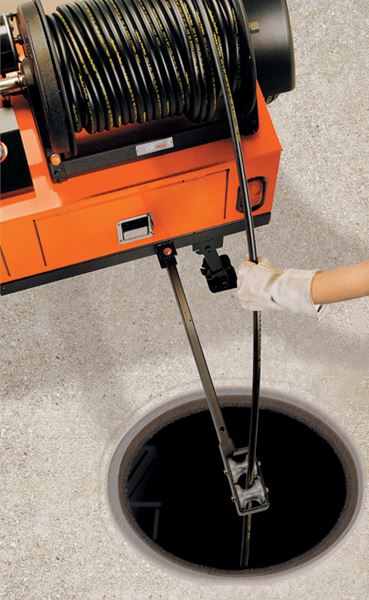

 N/A Electric brakes, safety strobe light, three safety cones with holder, rear fold down stabilizer jacks, and retractable guide arm.

Flow Rate

 N/A 12 gpm

JM-1000 Accessories

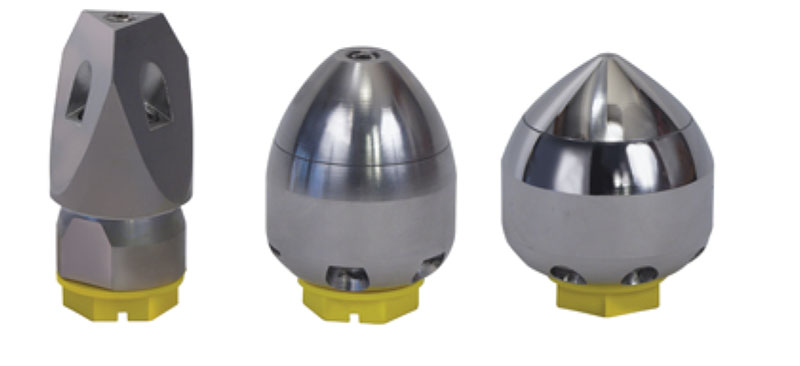

High Performance Nozzles

 N/A The Typhoon's® High Performance Nozzles incorporate patented fluid mechanics that significantly increase thrust, pulling power, and cleaning power without needing to increase water flow or pressure.

Additional Information

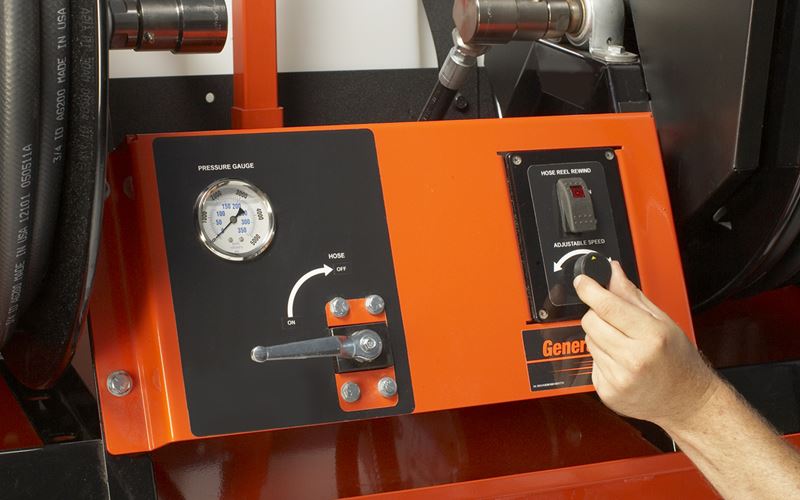

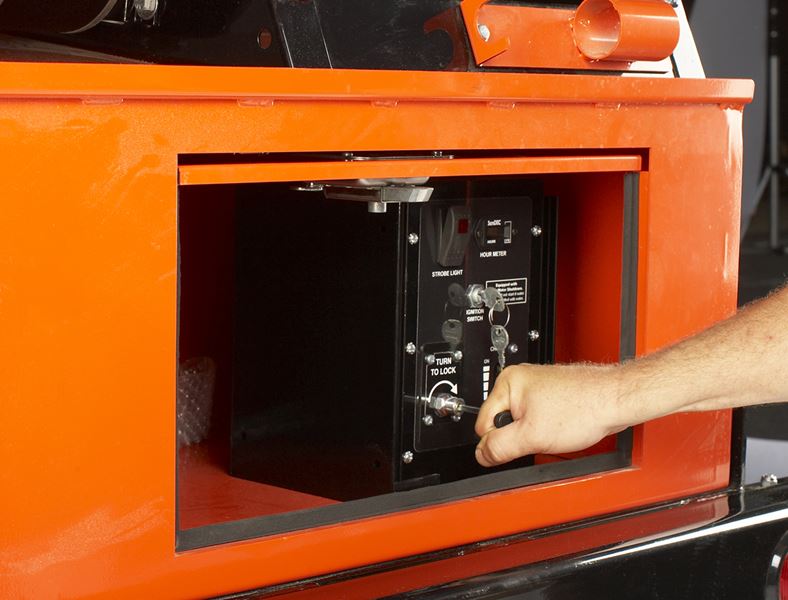

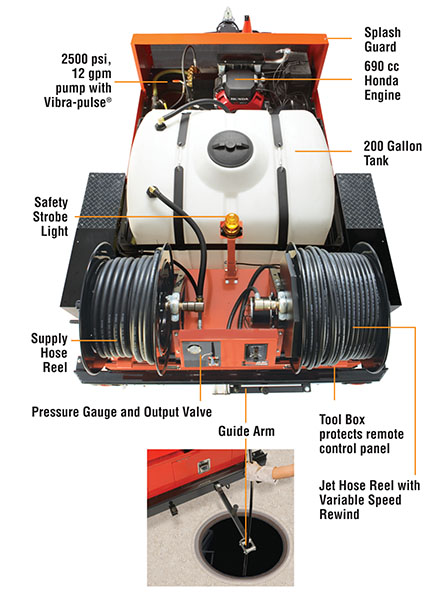

N/A A 690 cc Honda engine with electric start powers the 2500 psi, 12 gpm pump with Vibra-pulse® through a V-belt reducer. Two hose reels - an electric rewind jet hose reel with 400 ft. x 1/2 in. capacity featuring a variable speed controller, and a supply hose reel carrying 150 ft. x 3/4 in. hose - are mounted at the rear of the unit next to the pressure gauge and output valve. Engine controls, including an hour meter, are mounted within easy reach in the lockable tool box with slide action doors just below the reels.

The Typhoon is mounted on a heavy-duty trailer rated for 3500 lbs. per axle with bearing buddies, and rides on 15 in. radial tires with modular wheels. A splash guard at the front protects the pump and engine from road debris. The body is protected by a durable powder-coated epoxy finish for added weather protection.

Standard safety features include electric brakes, safety strobe light, three safety cones with holder, rear fold down stabilizer jacks, and retractable guide arm. An anti-freeze system protects the unit from freeze damage. Complete with spray wand and trigger.
