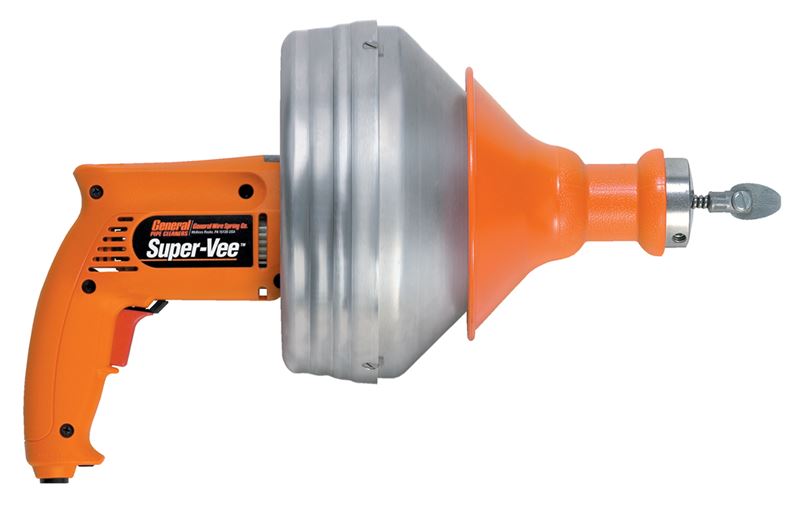

The small line specialist.

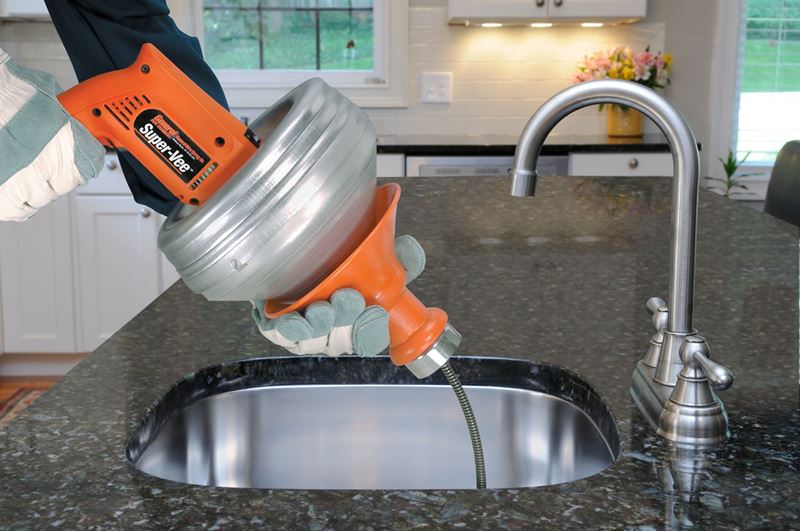

For kitchen, bathroom, laundry drains, and lines up through 3" in diameter. The Super-Vee® has a patented Slide-Action Chuck built right into the grip shield. Just slide it back to grip the cable; forward to release it. Automatically adjusts for different size cables.
Unit of Measure

Specifications

Brands

 N/A Super-Vee®

Chuck

 N/A Slide Action Chuck
Capacity1 N/A 35 ft. of 3/8 in. cable 50 ft. of 1/4 in. cable 50 ft. of 5/16 in. cable

Motor Power

 N/A All ball-bearing, double-insulated, reversible motor with variable speed control.

Motor Speed

 N/A 0 to 500 rpm

Cable Cartridges

 N/A Light weight, impact resistant plastic.

Industry Standards

 N/A CSA Approved UL Listed

Options

 N/A CAA (Closet Auger Attachment Guides) - 1/4 in. or 5/16 in. cable into bowl DHF (All-Purpose Down Head Fitting) - Can be used with all standard HECS cutters MCC Carrying Case

Cable Size

 N/A 25 ft. x 3/8 in. (25HE2) and 25 ft. x 1/4 in. (25HE1)

Boxed Weight

 N/A 32 lb

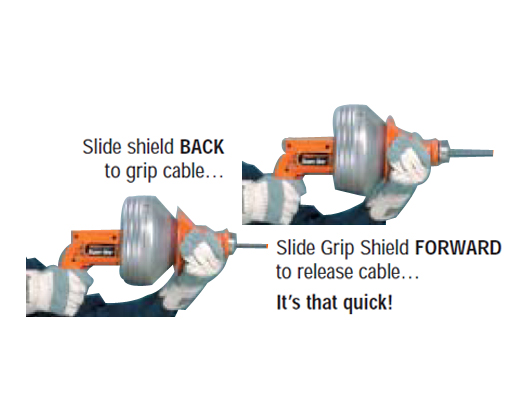

Slide Action Chuck

N/A Grip shield moves back to engage cable, forward to release it. Automatically adjusts for different diameter cables

With a quick movement of the Grip Shield, you release or engage the cable - without the need for a chuck, and with automatic adjustment for different cable diameters. As a result, you get your cable into the line faster, pull it out faster, and have full control at all times. Because the Slide Action Chuck is linked to the Grip Shield, handling is easy and comfortable.

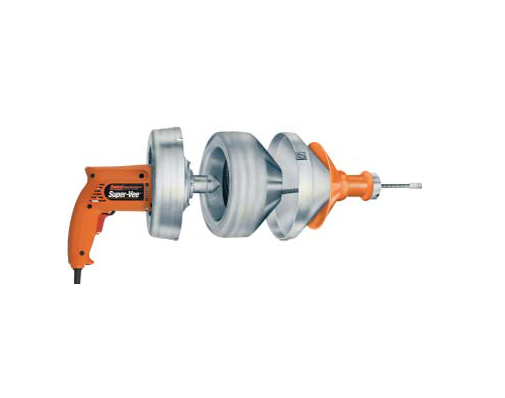

Quick-Change Cable Cartridges

N/A To switch to a different diameter cable (or even connect two 3/8 in. cables together), you just loosen three screws, pull the front of the drum off the cable, and load another cartridge. Changing takes less than a minute and turns what could be a messy job into a clean one. The tough plastic cartridges are so inexpensive, you'll probably want to store all of your Super-Vee® cables in them.

Cutter Sets

N/A 1-1/4 SCB - 1-1/4 in. Side Cutter Blade (2 piece set) AH - Arrow Head Starting Drill BG - Boring Gimlet DHBG - Down Head Boring Gimlet FAH - Flexible Spring Arrow Head Cutter

Note

N/A 220/230 & 240 Volt/50 Hz and cordless units are available.

  • 1 All cables are left hand wound and reinforced with a wire rope center.
