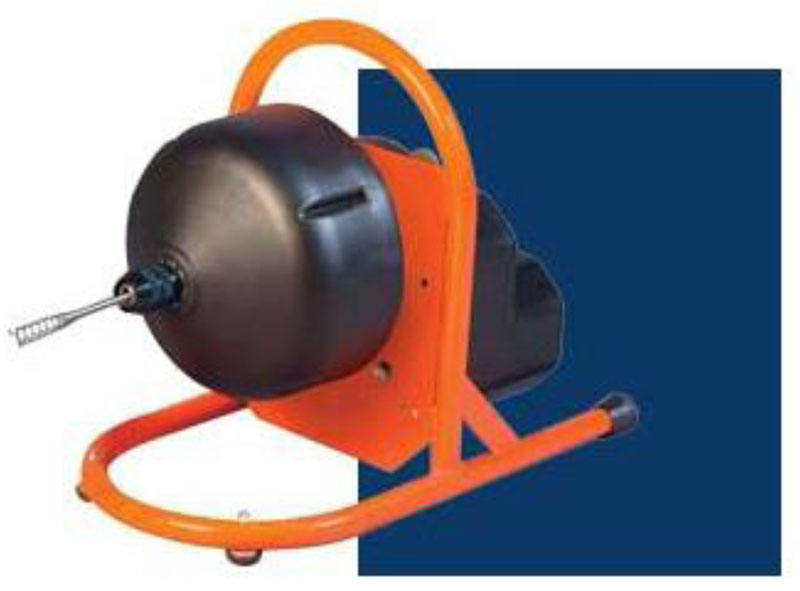

The variable speed power cable feed on the DRZ-PH gives you complete control as it feeds and retrieves the cable at up to 16 ft. per minute. The four foot guide tube means you never have to touch the cable so your hands, and the jobsite, stay clean.
Unit of Measure

Specifications

Width

 N/A 28 cm11 in.

Height

 N/A 38 cm15 in.

Weight without Cable

 N/A 30 lb13.6 kg

Depth without Hose

 N/A 20 in.51 cm

Chuck

 N/A Variable Speed Automatic Feed
Capacity1 N/A 35 ft. of 3/16 in. cable. 50 ft. of 1/4 in. or 5/16 in. cable

Motor Power

 N/A 1/5 hp

Motor Features

 N/A With forward-off-reverse switch, fuse protected

Foot Pedal

 N/A Pneumatic foot pedal leaves operator's hands free to control cable

Power Feed

 N/A Variable Speed

Note for Power Feed

 N/A Drives 1/4 in. 5/16 in. and 3/8 in. cables.

Industry Standards

 N/A cULus Listed

Cable Size

 N/A 50 ft. x 5/16 in. (50HE1-AC)

DRZ Economy Drain Cleaner

 N/A The less expensive DRZ uses a patented Quick-Grip™ chuck instead of the variable speed power cable feed, and the cable is housed in a tough impact resistant plastic drum.

Flexicore® Patent Numbers

 N/A 2,244,735 2,849,870

Additional Information

N/A Looking for a cleaner way to clean drains? The Model DRZ is the answer Light and powerful for a machine of its size, the DRZ is ideal for clearing clogged sinks, tubs, and laundry drains in 1- 1/4 in. to 3 in. drain lines up to 50 ft. long.

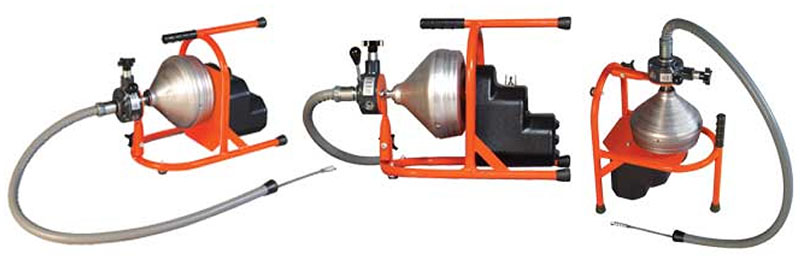

DRZ-PH-B with 50 ft. x 5/16 in. (50HE1-AC) cable, and HECS cutter set.
Made in USA

Operate the machine horizontally on the kitchen counter or vertically on the floor next to the tub. The silent motor wont disturb your customers while on the job. Use the pneumatic pedal to keep your hands free to control the feed and guide hose.

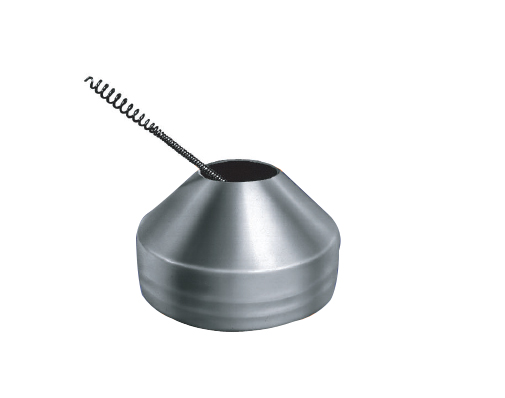

The rust resistant aluminum drum carries up to 50' of 1/4 in. or 5/16 in., or 35' of 3/8 in. Flexicore® wire rope center cable. A quick change cartridge system allows you to switch to a different diameter cable without pulling the old cable out of the drum.

Weighing as little as 30 lbs. the light-weight machine is easy to handle. Use the carrying handle on top to carry to and from the job.

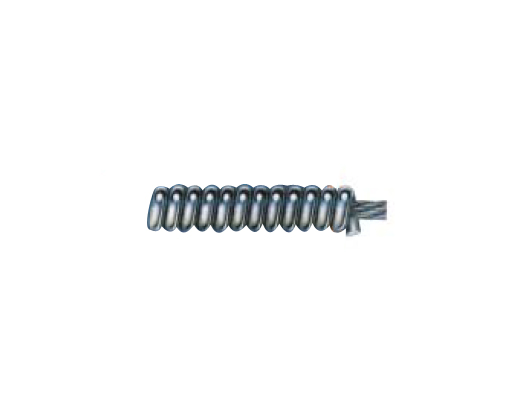

Flexicore® Cable

N/A Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It's so tough, it has a one year warranty against defect or breakage

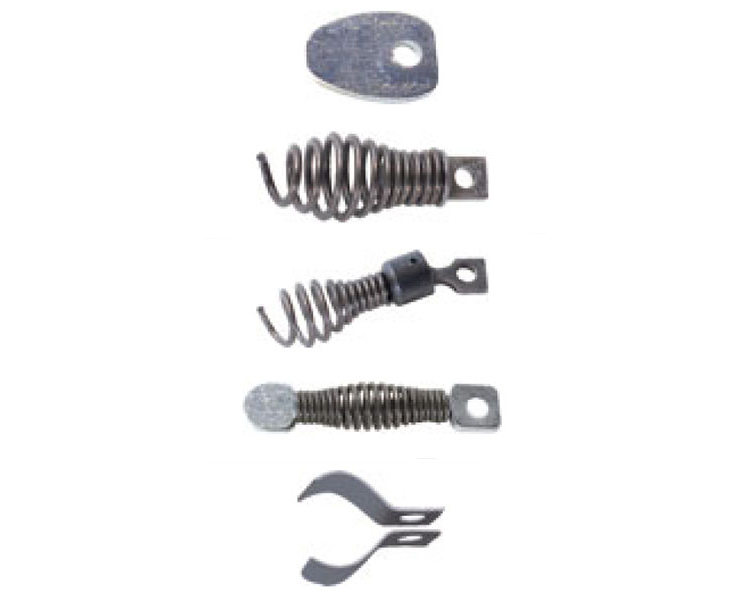

Cutter Sets

N/A Arrow Head Starting Drill
Part Number: AH
Application: Starting Drill (Gets water flowing)

Boring Gimlet
Part Number: BG
Application: For removing loose objects

Down Head Boring Gimlet
Part Number: DHBG
Application: For removing loose objects (Goes down waste, not up stack)

Flexible Spring Arrow Head Cutter
Part Number: FAH
Application: Starting Drill (For sharp turns in small lines)

1-1/4 Side Cutter Blade (2 piece set)
Part Number: 1-1/4 SCB
Application: For cutting and scraping

Basic Units Include

N/A

  • Aluminum Drum
  • Variable Speed Power Cable Feed
  • Four Foot Guide Hose
  • 1/5 hp Motor with Reverse Switch
  • Water-Proof Air Foot Switch
  • Quick Charge Plastic Cartridge
  • 1 All cables are left hand wound and reinforced with a wire rope center.
