Request Information
Includes GX-500 Command Module, SL-GL-200 reel with Self-Leveling Color Camera, Docking Kit and 2, 3, & 6" skids.

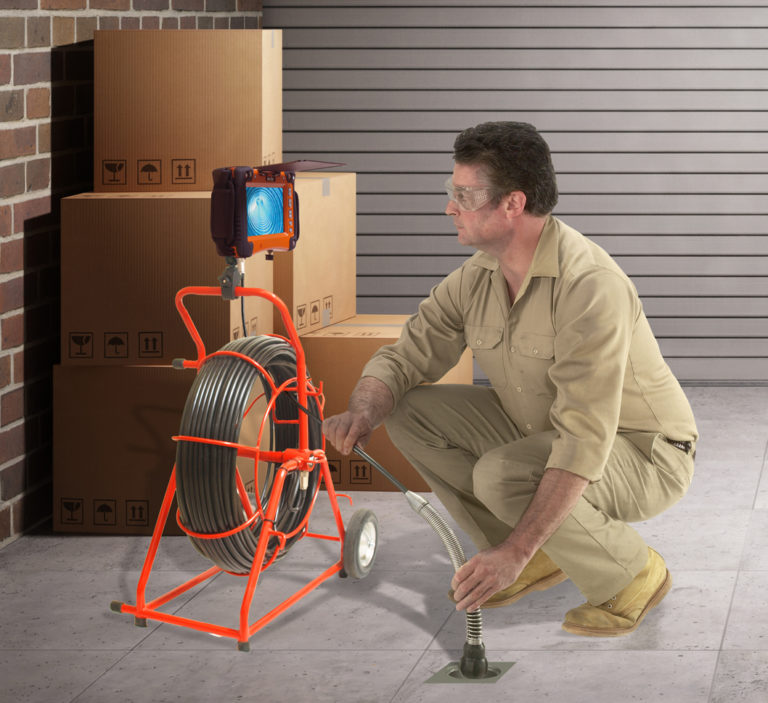

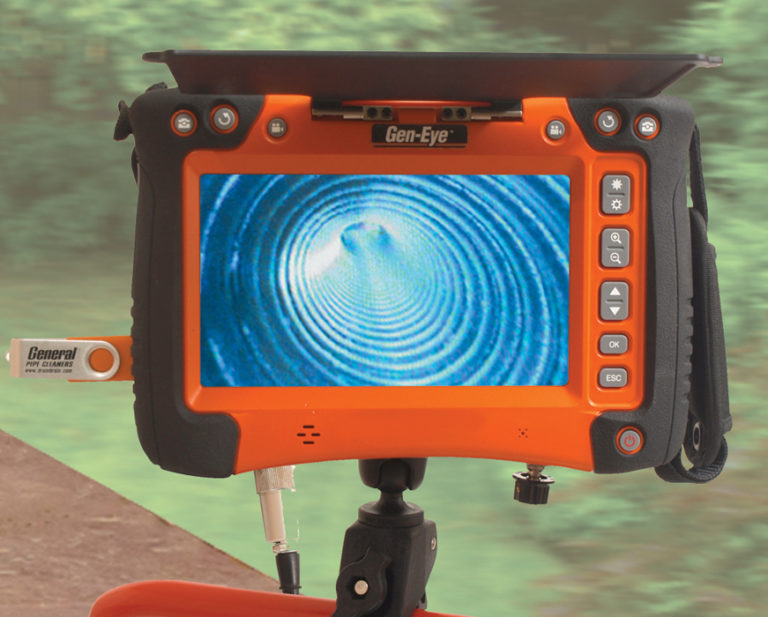

The new Gen-Eye X-POD® pipe inspection camera features a powerful new Command Module with USB port to record video inspections on flash drives. It's packed with features like a big 7" LCD color monitor for crisp, clear pictures, one-touch recording, digital zoom, voice-over recording, date and time stamp, and flash drive capacity indicator. Adjustable mount lets you set the monitor for the best viewing angle.
Unit of Measure

Specifications

Brands

 N/A Gen-Eye®

Liquid Crystal Display (LCD) Color Monitor Size

 N/A 7 in.

Operating Temperature Range

 N/A 14 to 122 ºF-10 to 50 ºC

White Balance

 N/A Auto High Speed

Video Format

 N/A NTSC PAL

Alternating Current (AC) Voltage

 N/A 110 V

Frequency

 N/A 60 Hz

Direct Current (DC) Voltage

 N/A 12 V

Line Capacity (Self-Leveling Color Camera)

 N/A 3 to 10 in.

Line Capacity (Mini Self-Leveling Color Camera)

 N/A 2 to 3 in.

Reel Capacity (Self-Leveling Color Camera)

 N/A 200 ft.300 ft.400 ft.

Reel Capacity (Mini Self-Leveling Color Camera)

 N/A 100 ft.200 ft.

Sensitivity (Self-Leveling Color Camera)

 N/A 0.5 lux

Sensitivity (Mini Self-Leveling Color Camera)

 N/A 0.008 lux

Lighting (Self-Leveling Color Camera)

 N/A 16 White LED's 88K MCD

Lighting (Mini Self-Leveling Color Camera)

 N/A 4 Super Bright White LED's 78K MCD

Camera Diameter (Self-Leveling Color Camera)

 N/A 1.625 in.

Camera Length (Self-Leveling Color Camera)

 N/A 2.7 in.

Camera Diameter (Mini Self-Leveling Color Camera)

 N/A 1.125 in.

Camera Length (Mini Self-Leveling Color Camera)

 N/A 1.74 in.

Push-Rod Diameter (Self-Leveling Color Camera - Gel-Rod®)

 N/A 0.475 in.

Push-Rod Diameter (Mini Self-Leveling Color Camera - Gel-Rod®)

 N/A 0.400 in.

Reel Length (Self-Leveling Color Camera)

 N/A 29 in.

Reel Width (Self-Leveling Color Camera)

 N/A 16 in.

Reel Height (Self-Leveling Color Camera)

 N/A 33-1/2 in.

Reel Length (Mini Self-Leveling Color Camera)

 N/A 18 in.

Reel Width (Mini Self-Leveling Color Camera)

 N/A 16 in.

Reel Height (Mini Self-Leveling Color Camera)

 N/A 19 in.

Gen-Eye® X-POD Monitor Width

 N/A 10 in.

Gen-Eye® X-POD Monitor Height

 N/A 7 in.

Gen-Eye® X-POD Monitor Depth

 N/A 2.75 in.

Gen-Eye® Features

X-POD® Monitor Features

 N/A
  • 7" LCD screen for crisp clear pictures
  • One-touch recording of video or photos
  • Left hand or right hand operation for video and photo buttons
  • USB recording drive - Can handle up to 64GB flash drive
  • Flash drive can be used on any computer with USB port for viewing for sending files
  • Easy playback of video or photos on monitor
  • Digital zoom increase picture size X4
  • Picture rotate and mirror image buttons
  • Internal microphone and speaker for voice over recording
  • On-screen date and time indicators
  • On-screen USB Flash Drive capacity indicator
  • LED Dimmer control under monitor
  • Hand straps on monitor for hand held operation
  • Kick stand on back of monitor for hand-held operation
  • Built-in sunshield for outdoor use protects screen when closed
  • Can be used with any GL reel - no extra parts required!
  • Includes 3 ft. probe-rod, 3 pc. adapter kit, AC and DC power cords, 8 GB flash drive, and carrying case

Other Features Include

 N/A
  • Large 7" Screen
    Large 7" LCD color monitor gives you crisp, clear images to make it easier to see the picture while doing inspections.
  • USB Port Record video or still images on flash drive. Can handle up to 128 GB flash drive.
  • Digital Zoom
    Increases picture size 4X.
  • Picture Rotate
    Rotate and mirror image buttons.
  • Built-in voice over recording
    Internal microphone and speaker lets you add commentary to your videos.
  • Built-in AC/DC converter
    Allows you to operate in the field with truck power alone.
  • Heavy-Duty Case
    Protects LCD screen, electronics, and your investment.
  • Self-Leveling Camera
    Automatically keeps picture right side up as the camera glides through the line. Just 1.375" in diameter with 16 Bright-White LED's to illuminate up to 10" lines.
  • Mini Self-Leveling Camera
    Mini Self-Leveling camera is just 1.125" in diameter with 4 Super Bright LEDs to light up 2" to 4" lines with 15% more candle power than other models

Big Capacity Reels

 N/A The full size reels feature a self-leveling color camera and 200 ft. Gel-Rod® for inspecting 3" to 10" drain lines. Ten inch wheels ensure easy transport to and from the job. The compact Mini-Reels carry 100 ft. or 200 ft. of Gel-Rod® with mini color self-leveling camera for trouble shooting 2" and 3" lines. The tough steel frame can be operated vertically or horizontally, so you can handle nearly any application.

Gel-Rod® Push Rods

 N/A Patented Gel-Rod® push rod withstands tough abuse in the line. The Gel in the cable keeps the moisture away from the wires if it's ever cut or abraded. Further, the dual layer/dual color construction let's you see cable wear so it can be repaired before it becomes a problem. The Kevlar® braid, fiberglass core, and durable sheath provide for maximum pushing and pulling power.

Advanced Skid Designs

 N/A Skids keep the camera centered in the pipe for a better view, while reducing drag on longer runs. Standard systems include both 2, 3" and 6" trap skids that protect the camera from abrasion as it slides through cast iron traps. Optional 3-in-1 skid set for 4", 6" and 8" lines, and Universal Roller Skid for 6" to 12" lines are also available."

3 Feet (ft) Probe Rod

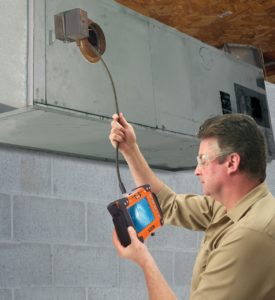

 N/A The Command Module also includes a 3 ft. Probe Rod with color camera for inspecting hard to reach places. Three adapters are included to improve your viewing angle or to retrieve objects.

Additional Information

N/A The Command Module also includes a 3 ft. Probe Rod with color camera for inspecting hard to reach places. Three adapters are included to improve your viewing angle or to retrieve objects.

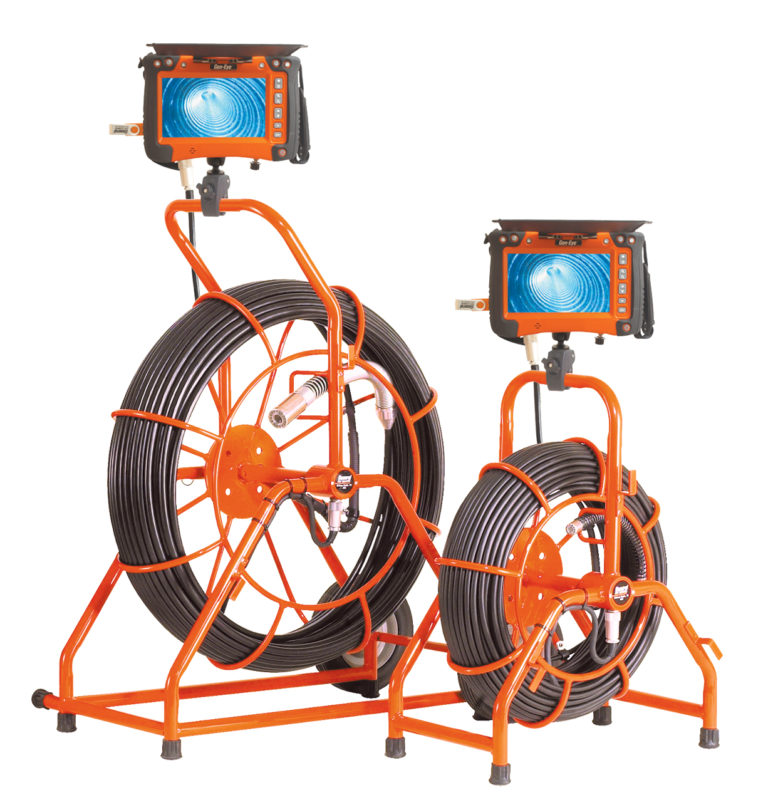

Just grab it and go! The full size X-POD® features a self-leveling color camera and 200 ft. Gel-Rod® for inspecting 3" to 10" drain lines. The compact Mini-Reels carry 100 ft. or 200 ft. of Gel-Rod® with mini self-leveling camera for trouble shooting 2" and 3" lines. The rugged steel frames and reels include a drag brake and reel lock. Full size reels sport 10" wheels to more easily roll the camera to and from the job.
