Request Information
The Gen-Eye® Micro-Scope® handheld inspection tool has a bright, easy-to-see 3.5 in. LCD screen for crisp clear pictures. You can record photos or videos on the built-in SD card reader with onetouch record button for playback on the internal screen, TV, or laptop computer though a USB port.

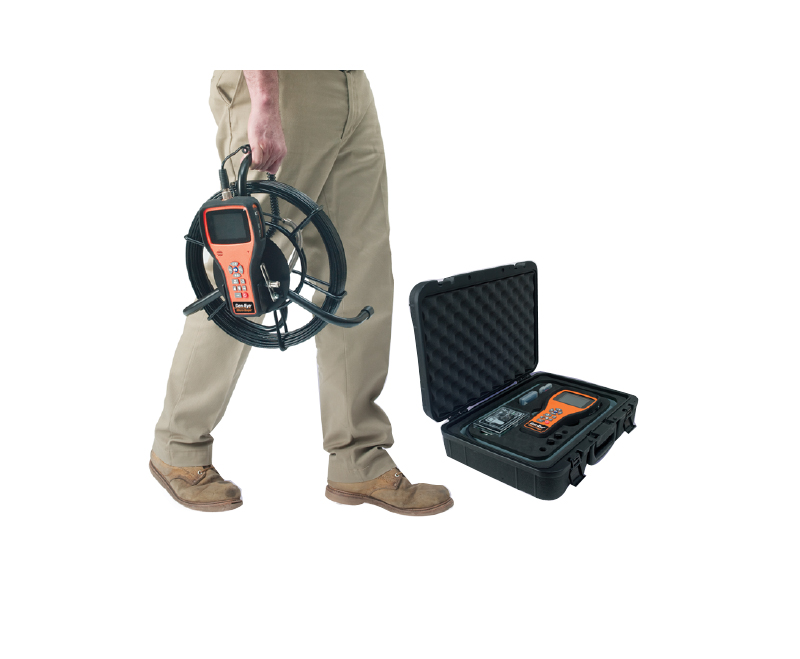

The Micro-Scope® reel carries up to 100 ft. of micro push rod with a color camera, giving you the ability to inspect 1-1/2 in. to 3 in. drain lines, and many toilet traps.

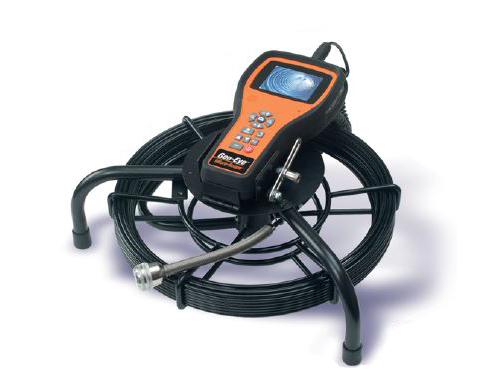

Micro-Scope® Command Module® with open reel, 100 ft. push rod, 3 ft. probe rod and color camera.
Unit of Measure

Specifications

Brands

 N/A Gen-Eye®

Probe Rod Length

 N/A 3 ft.

Camera Diameter

 N/A 1.1 in.

Push Rod Length

 N/A 100 ft.

Liquid Crystal Display (LCD) Color Monitor Size

 N/A 3.5 in.

Locator Included

 N/A No

Additional Information

N/A A 3 ft. probe rod with color camera lets you inspect in hard to reach places. Three adapters are included to improve your viewing angle or to retrieve objects. Probe extensions are available.

The Micro-Scope® Command Module® is loaded with lots of great stuff, including a digital zoom, rotatable picture, voice over recording capability, and LED brightness control. On-screen status indicators include date and time, SD card capacity, and battery strength. The rechargeable battery drives the unit for up to four hours.

Features

N/A

  • 3.5 in. LCD color monitor
  • SD card reader to store stills or videos
  • One touch record button
  • On-Screen SD card capacity indicator
  • LED brightness control
  • Digital zoom
  • Picture rotate and mirror image buttons
  • Internal microphone and speaker for voice over
  • USB port to connect to computer
  • Video-Out to connect to TV
  • Internal battery lasts up to 4 hours
  • On-screen battery strength indicator
  • On-screen date and time
  • 3 ft. probe rod and color camera with 6 LED's
  • 3 probe attachments - 45 deg. mirror, magnet and hook
  • Rubber bumper protects Command Module® on the job
  • Open reel with adjustable monitor mount to give you the best viewing angle
  • Carries up to 100 ft. of micro-push rod and color camera with 12 LED's

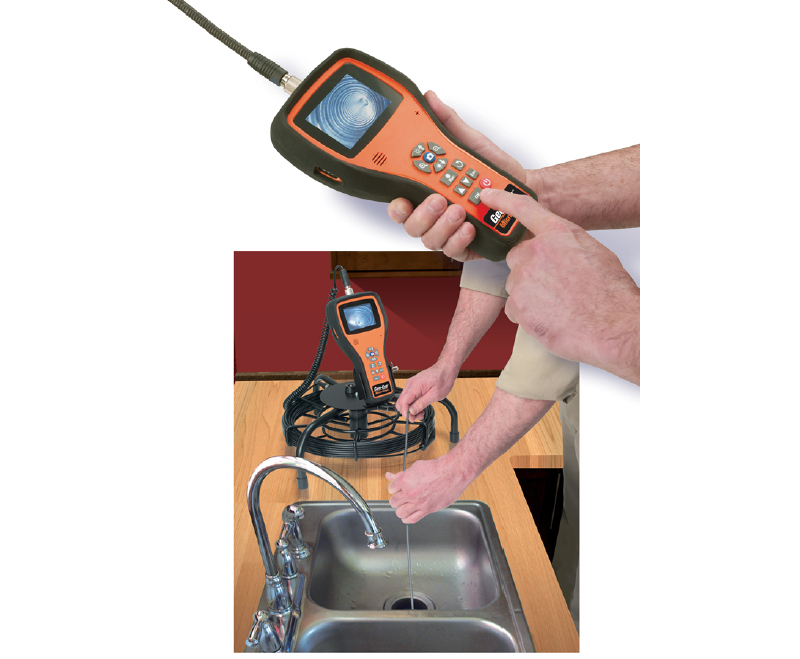

  • Ability to inspect 1-1/2 in. through 3 in. drain lines, and many toilet traps

Note

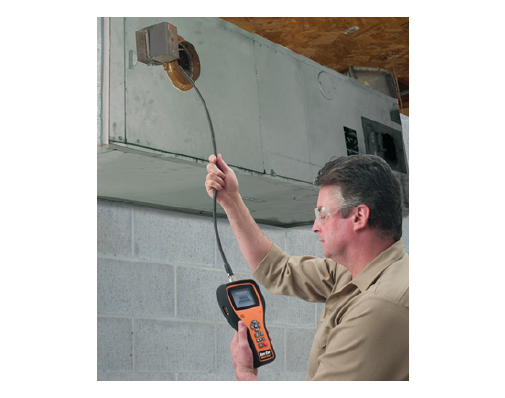

N/A A 3 ft. probe rod lets you inspect in hard to reach places, like duct work, furnaces, crawl spaces, and more.

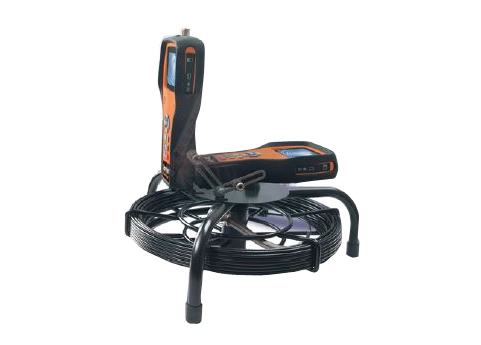

Open reel with adjustable monitor mount to give you the best viewing angle.
