Self-Feeds Reinforced Sectional Cables

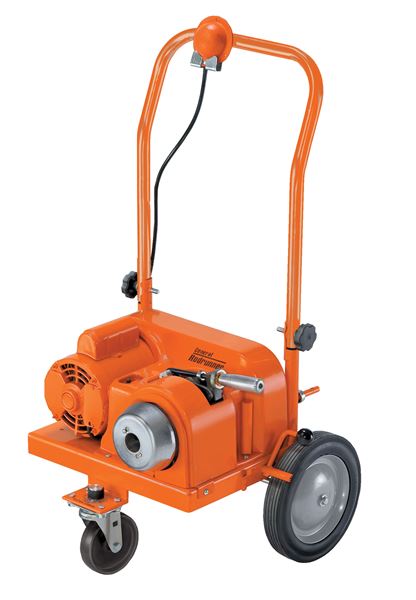

The Rodrunner offers all the features that contractors like in a sectional sewer cleaner - light weight, high speed cable rotation, and short, quick-coupling cables.
Unit of Measure

Specifications

Brands

 N/A Rodrunner®

Weight

 N/A 90 lb41 kg

Width

 N/A 22 in.56 cm

Height with Handle Folded Down

 N/A 19 in.48 cm

Motor Power

 N/A 3/4 hp at 485 rpm.

Cables

 N/A Cat # 10GP Proflex or 10GF Flexichain sections- 10 ft x 1-1/4 in. (3 m x 32 mm) with G-Connector for 3 in. to 10 in. (75 mm - 250 mm) lines. Cat # 15R11 or 15R14 sections - 15 ft x 1-1/4 in. (4.6 m x 32 mm) with R-Connector for 3 in. to 10 in. (75 mm - 250 mm) lines. Cat # 8LP or 10LP Proflex or 8LF or 10LF Flexichain sections - 8 ft or 10 ft x 1-1/4 in. 2.4 m or 3 m x 32 mm) with L-Connector for 3 in. to 10 in. (75 mm - 250 mm) lines.

Industry Standards

 N/A UL Listed

Wheels

 N/A 10 in. rear wheels, 5 in. caster wheel.

Combination Hand or Foot Operated Power Switch

 N/A Air activated for safety; no electrical connection between motor and switch; can be used as hand or foot switch. 11 foot air hose.

Wheel Brake

 N/A Locks rear wheels in place or releases them in an instant.

Twin V-Belts

 N/A For better power transmission.

Safety Clutch

 N/A An adjustable spring-loaded clutch is mounted at the rear of the cable drive shaft. Accessible without removing machine housing.

Chuck Handle

 N/A Clamps on cable or acts as "dead-man's throttle".

Cable Counter

 N/A Manually operated, to record number of cables in line.

Rear Cable Guide Hose

 N/A To limit cable whipping behind machine.

Two Way Operation

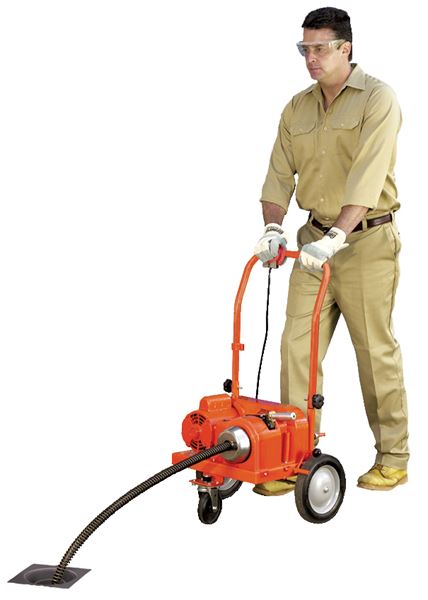

N/A Set the Rodrunner up close to the drain opening, or on easier jobs where you have some working room, you can run the machine "lawn-mower" fashion, standing behind the machine.

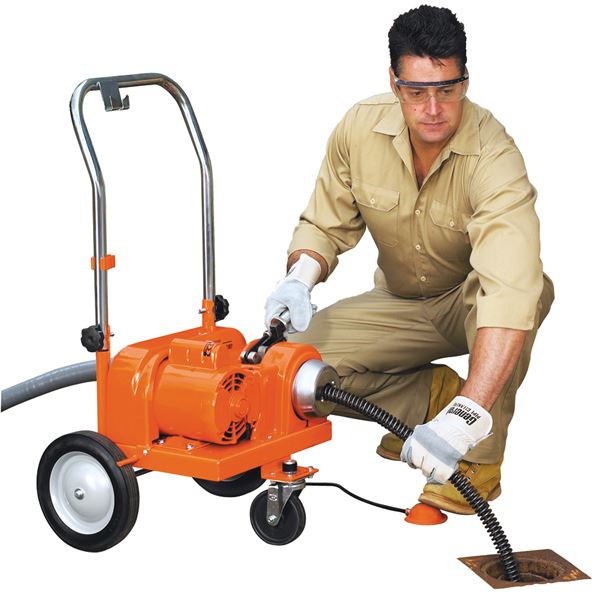

For close-up work, the wheel brake is set, the power switch is placed next to the machine as a foot switch, and the cable guide hose is attached. Now, the Rodrunner is ready to handle the toughest stoppages in 3-10 in. lines, as far as 200 feet away.

A heavy-duty 3/4 hp motor with capacitor and overload protection spins cable at 485 rpm, an ideal speed for self-feeding into the line while protecting the cable against sudden torque build-ups. For additional protection, the Rodrunner has an adjustable slip clutch, factory set at 18 - 20 ft. lbs.

An optional set of jaws (R-R10AD) enables the Rodrunner to drive 15 ft. x 7/8 in. (15R10) cables to clear smaller lines.

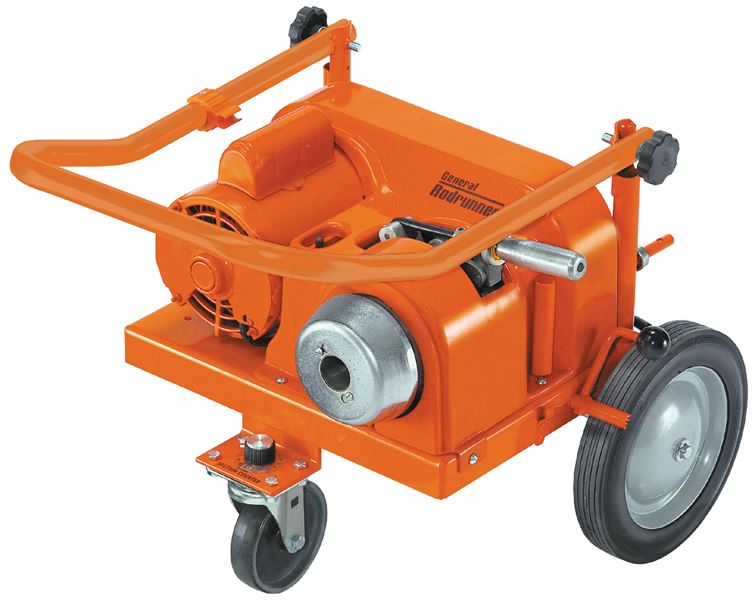

Folding Handle

N/A Reduces truck storage space.
