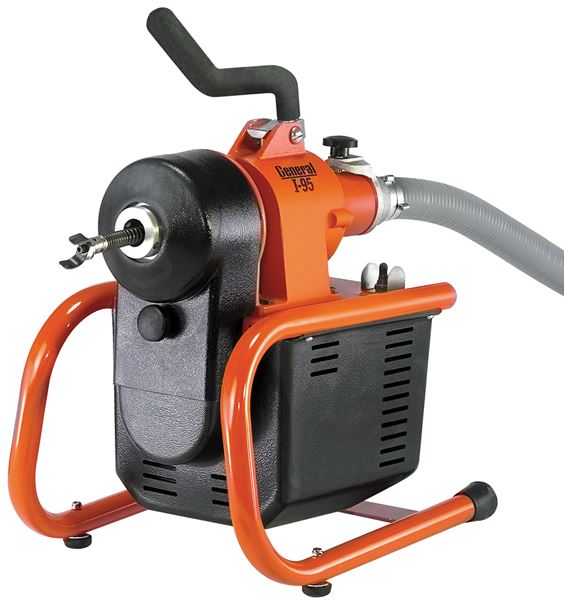

It's three machines in one.

With the I-95, you can clear 2"– 3" lines up to 125 ft. long with 5/8" x 7-1/2' sections, clear 4" lines up to 150 ft. long with 7/8" x 15' sections – or use 5/16" cables for small drain work. You switch from 7/8" to 5/8" and back by repositioning the chuck cone. Attach a small drum to the back of the machine to drive smaller cables.
Unit of Measure

Specifications

Brands

 N/A I-95®

Weight

 N/A 89 lb18 kg

Depth

 N/A 16 in.41 cm

Width

 N/A 14 in.35 cm

Height

 N/A 17 in.43 cm

Motor Power

 N/A 1/3 hp at 400 rpm.

Adjustable Chuck

 N/A Has two sets of notches; one for 5/8 in. cables and one for 7/8 in. cables. Switch from one to the other in seconds. Pull down handle to engage, lift to stop. Brake stops spinning drums instantly. Chuck handle also acts as lifting handle.

Chuck Jaws

 N/A Drive both 5/8 in. and 7/8 in. cables; also grip drum for smaller diameter cables.

Drum

 N/A Drum holds 25 ft. x 5/16 in. cable for 1-1/2 in. to 2 in. lines, or 35 ft. x 3/8 in. cable for 2 in. to 3 in. lines.

Cables

 N/A Cat # 15R10 or 15R10P with Proflex® inner core - 15 ft. x 7/8 in. (4.6 m x 22 mm) for 2 in. to 4 in. (50 mm - 100 mm) lines. Cat # 7.5R8 - 7-1/2 ft. x 5/8 in. (2.3 m x 15.6 mm) for 1-1/4 in. to 3 in. (30 mm - 75 mm) lines.

Leather Gloves

 N/A With double-reinforced palm, for hand protection when guiding cable.

Cutter Sets

 N/A Cutter Set for 7/8 in. cables includes Spear Head, 2 in. U-Cutter, 3 in. U-Cutter, Hook Auger, and Retrieving Tool.
Cutter Set for 5/8 in. cables includes Arrow Head, Boring Gimlet, 1-1/2 in. U-Cutter, and Retrieving Tool.

Industry Standards

 N/A UL Listed

Maximum Range

 N/A Up to 125 ft. Up to 150ft.

Additional Information

N/A You also use the drive handle to carry the machine. And when it's in position on the job, its four point base gives it rock-solid stability. A cutter holder is attached to the back of the I-95®, so your cutting heads are always with the machine. A Ground Fault Circuit Interrupter is standard equipment.

Clear 1-1/2 in. - 2 in. lines with 5/16 in. x 25 ft. cable.

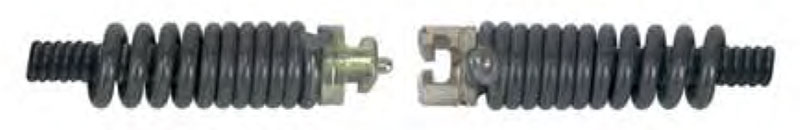

15R10-P Proflex® Cable

N/A Optional 7/8 in. sectional cable (15R10-P) with Proflex® inner core gives cable more strength for cutting through difficult stoppages.

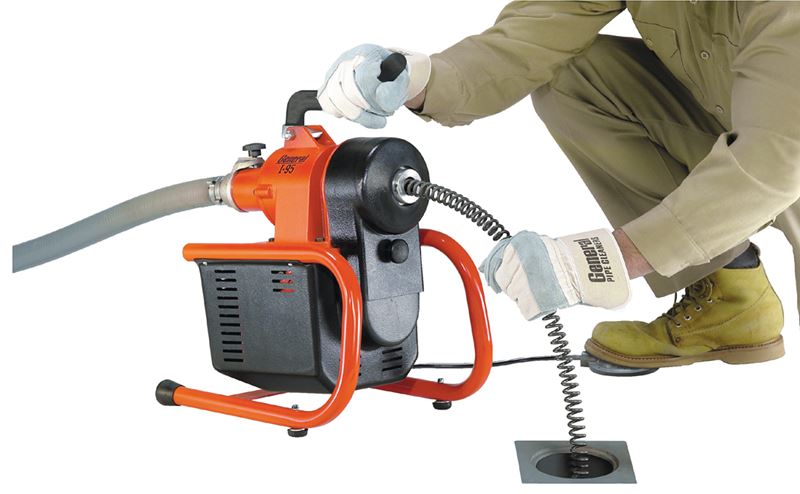

Clear 2 in. - 3 in. lines up to 125 feet long with 5/8 in. x 7-1/2 ft. sections or 4 in. lines up to 150 feet long with 7/8 in. x 15 ft. sections.

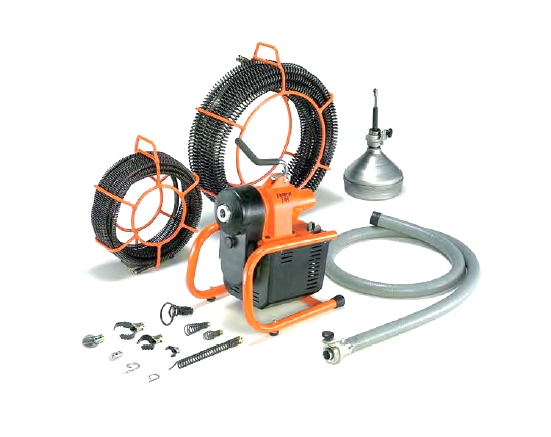

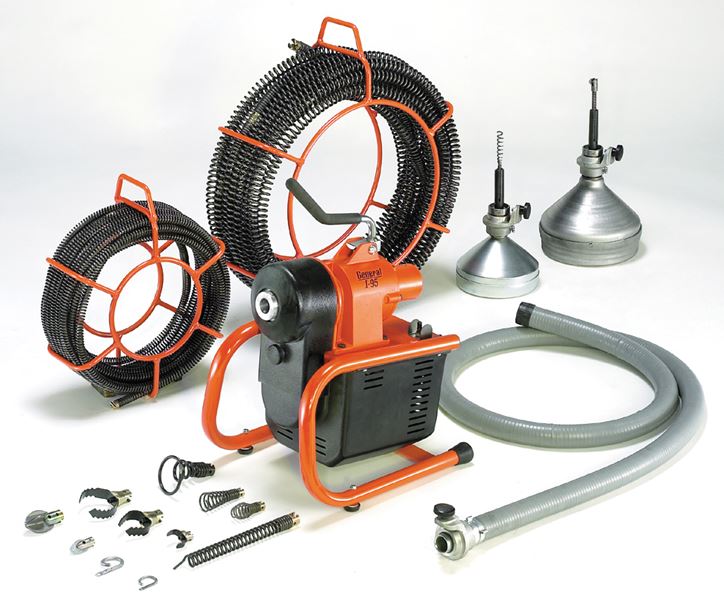

I-95® Accessories

N/A Includes cable carriers, drums for small drain work, a rear guide hose, and a tool box - standard on 7/8 in. cable units.

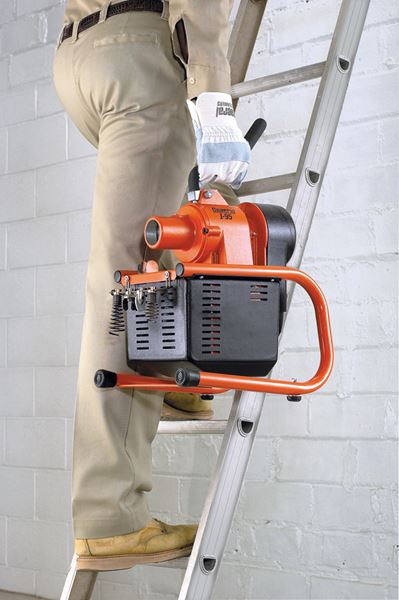

Transportable

N/A Light weight I-95® is easy to carry up a ladder.
