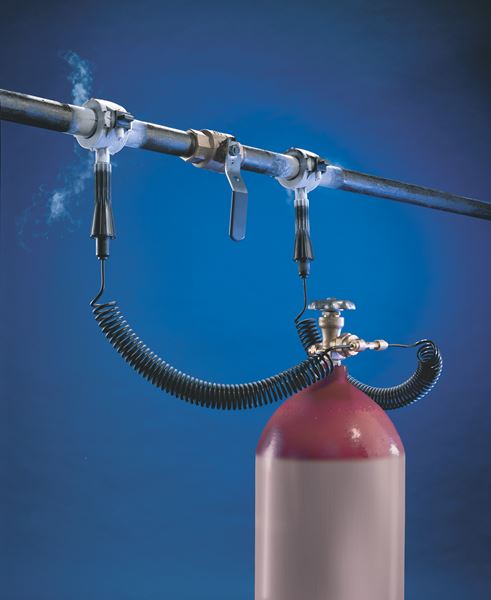

With a Cold-Shot®, you don't have to drain water lines, sprinkler systems, or hot water systems before cutting pipe or tubing. It keeps a fully pressurized system operating while you make repairs.

The Cold-Shot® freezes liquids in steel, copper, cast iron, aluminum and plastic pipes ranging from 1/8 in. through 2 in. (10 to 60 mm) using Carbon Dioxide (CO2). Dip tube-type CO2 cylinders are available from any welding supply house.
Unit of Measure

Specifications

Brands

 N/A Cold-Shot®

Freeze Head Size

 N/A 1/8 in.1/4 in.3/8 in.1/2 in.3/4 in.1 in.1-1/4 in.1-1/2 in.2 in.10 mm12 mm15 mm18 mm22 mm28 mm35 mm42 mm54 mm60 mm

Intended Material

 N/A Copper Steel

Boxed Weight

 N/A 12 lb

Additional Information

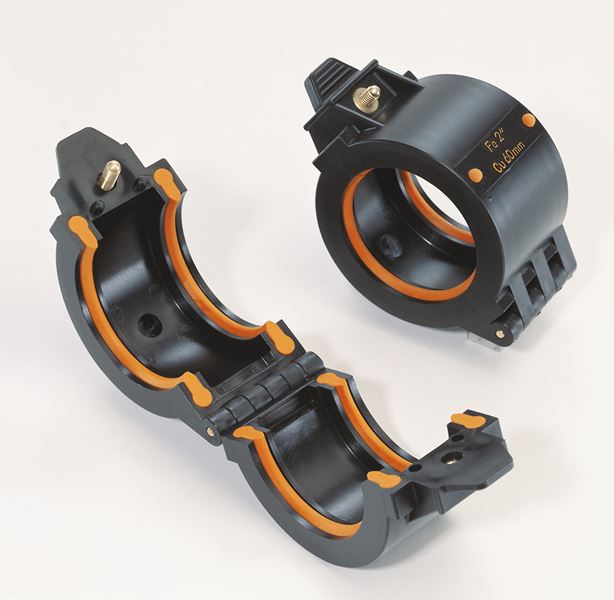

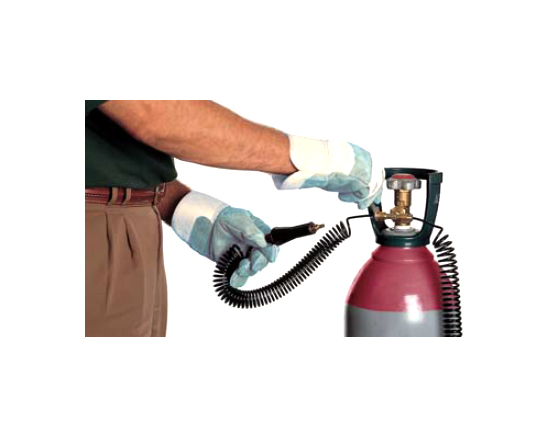

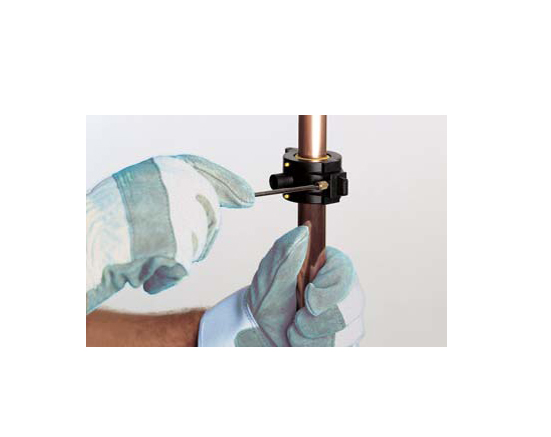

N/A The Cold-Shot® is easy to use. Just place the freeze head around the pipe, attach the hose, and open the cylinder valve. Liquid carbon dioxide will flow into the freeze head and form dry ice with a temperature of minus 110 ºF (-79 ºC). That's cold enough to form an ice pack that can withstand 7000 psi, yet won't damage pipes.

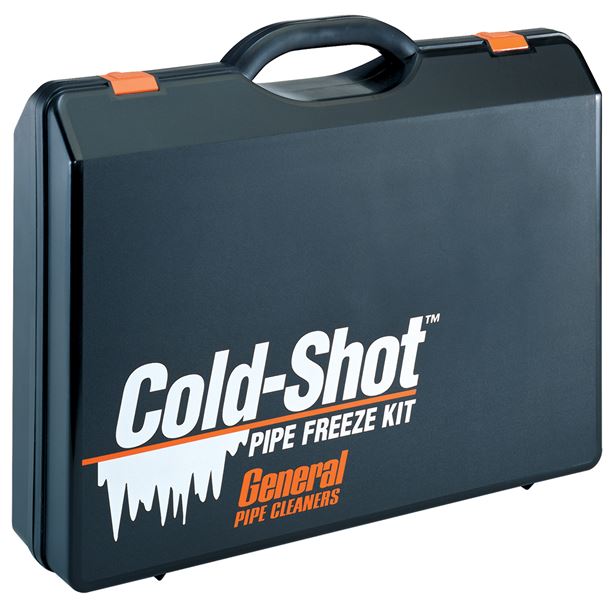

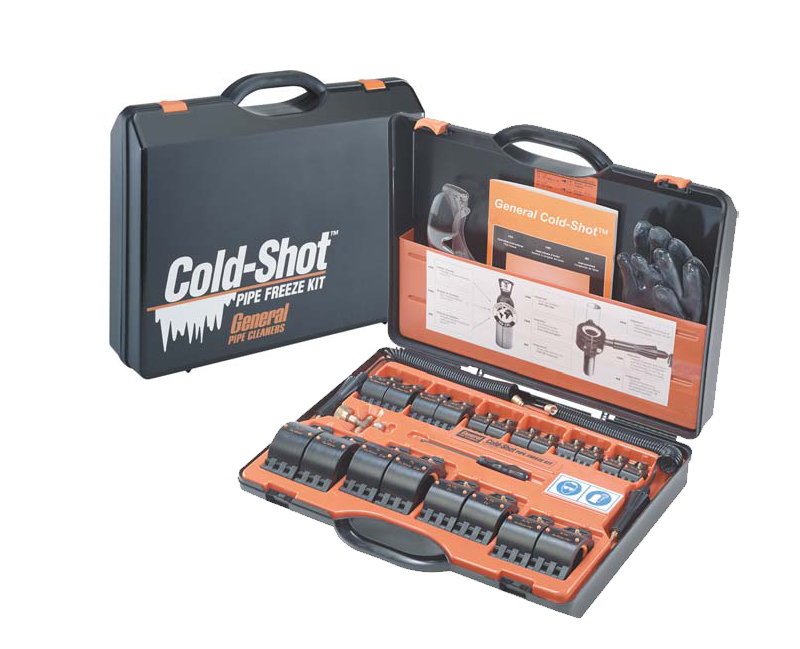

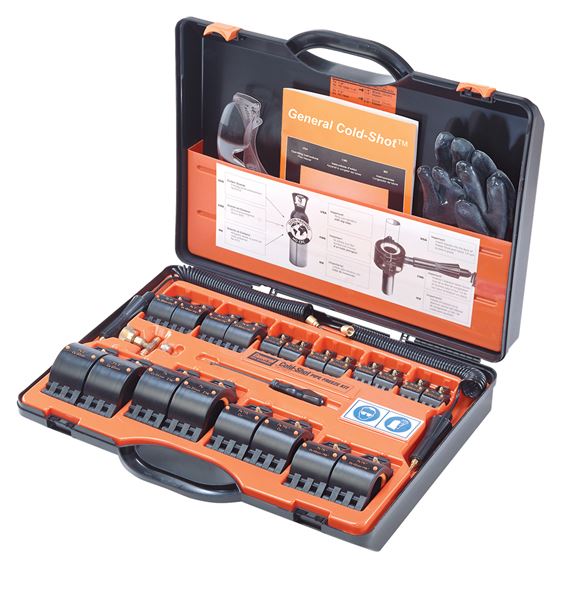

Kit includes 10 sets of freeze heads for 1/8 in. to 2 in. lines (10 mm to 60 mm), two high pressure spiral hoses with injectors, T-distributor, locking nut, hex head screwdriver, rubber gloves, goggles and carrying case.

The freezing times and CO2 requirements are general guidelines based on a water temperature 68 ºF (20 ºC). These figures will vary for other temperatures. Longer freezing times are required for plastic pipe.

The Cold-Shot® works faster than "refrigerator-type" units, is more compact and less expensive. It's faster and uses less CO2 than "bag-type" pipe freezers, because the freeze head makes a better seal around the pipe. In five minutes you're ready to go to work on 1/2 in. copper tubing, and just three minutes for cast iron pipe.
