Extra portability and performance.

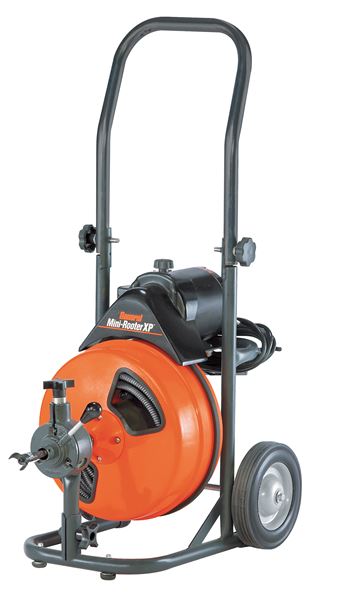

The Mini-Rooter XP keeps the weight on the ground and maximizes mobility with 8" semi-pneumatic wheels. A variable speed power cable feed quickly adjusts between 3/8" and 1/2" cables.
Unit of Measure

Specifications

Brands

 N/A Mini-Rooter

Depth

 N/A 24 in.61 cm

Width

 N/A 18 in.46 cm

Height with Handle Folded Down

 N/A 38 in.96 cm

Drum Capacity

 N/A 75 ft x 3/8 in. or 1/2 in. (22.5 m x 9.5 mm) Flexicore® Cable

Motor Power

 N/A 1/3 hp

Motor Features

 N/A Forward-off-reverse switch, spring-loaded mounting for proper belt tension. Load speed 165 rpm.

Weight with Power Feed and without Cable

 N/A 67 lb30 kg

Wheels

 N/A 8 in. semi-pneumatic tires with oilite bronze bushings.

Leather Gloves

 N/A With double-reinforced palm, for hand protection when guiding cable.

Industry Standards

 N/A CSA Approved UL Listed

Foot Pedal

 N/A Leaves operator's hands free to control cable. Uses air pressure, so there's no electrical contact between pedal and motor.

Power Cord

 N/A 10 ft. 3-wire in-line ground fault circuit interrupter.

Available Cutter Heads

 N/A 1-1/2 in. U-Cutter 2 in. Side Cutter Blades Arrow Head Boring Gimlet

Power Cable Feed

N/A A variable speed power cable feed attachment makes feeding and retrieving the cable much easier. It quickly adjusts between 3/8 in. and 1/2 in. cables without the need for tools or additional parts.

Drives 1/2 in. and 3/8 in. cables.

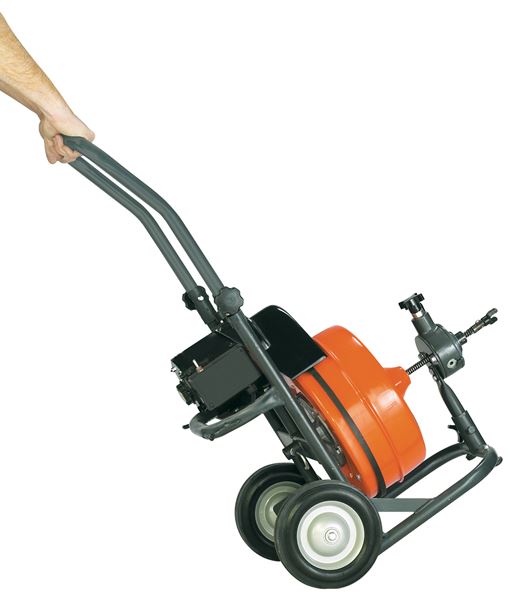

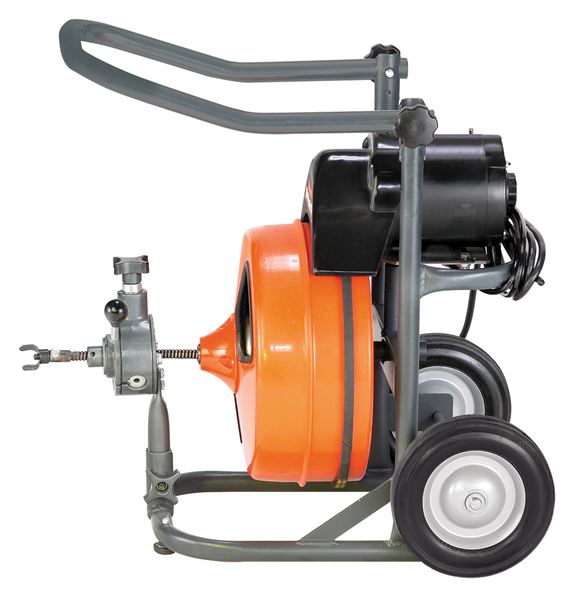

Folding Handle

N/A The handle is tall enough to make it easy to move to the job, yet it can be quickly folded to take less room in your truck.

Reduces storage space.

J-Drum

N/A With a J-Drum, you're ready for small drain work in seconds. Equipped with a collet chuck with tightening handle. Will hold any Super-Vee cable.

Capacity of 50 ft. of 1/4 in. or 5/16 in. Flexicore® cable.

Additional Information

N/A A roll bar protects the 1/3 hp motor when going up or down stairs. And the power cord and foot pedal can be stowed away on convenient cord wraps.

The XP gives you extra performance and value, enabling you to clear clogged drain lines from 1-1/4 in. to 4 in. in diameter with just one machine. The drum easily holds 75 feet of 3/8 in. or 1/2 in. cable and features a free floating inner drum with an integral distributor tube to help prevent cable tangling. By switching to the optional J-Drum you can handle smaller drain lines.

You'll want to equip your XP with a Power Cable Feed too. It makes a lot of tough jobs go much easier. Even with the power cable feed option, the drum is a snap to remove, taking less than a minute.

Of course the XP comes with an air foot pedal and Ground Fault Circuit Interrupter for safety, and General's patented Flexicore® wire rope center cable for durability.

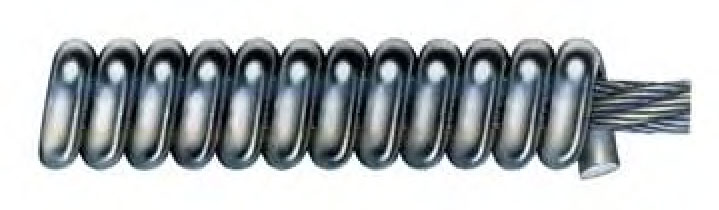

Flexicore® Cable

N/A Wire rope center construction

Heavy-gauge wire coiled tightly around 49-strand aircraft-type wire rope and heat treated. Has unequalled strength and the right amount of flexibility. So tough it carries a one-year warranty against defect or breakage.

Flexicore® Patent Nos. 2,244,735 and 2,849,870
