New design gives you easier handling.

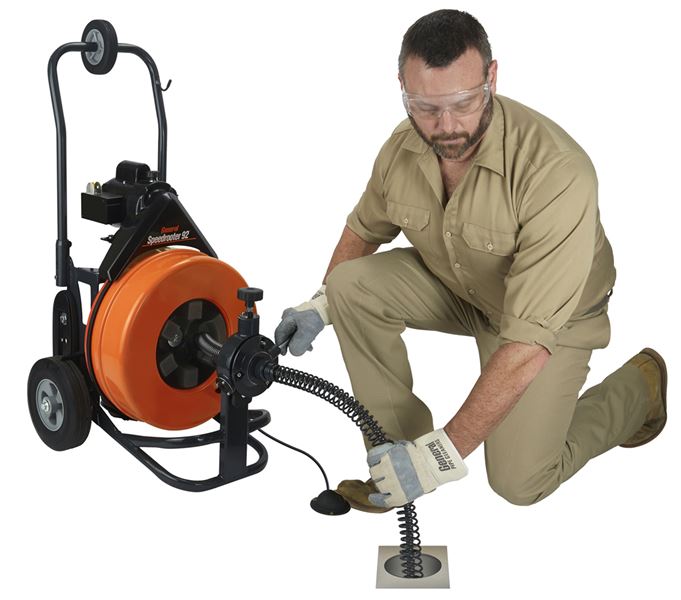

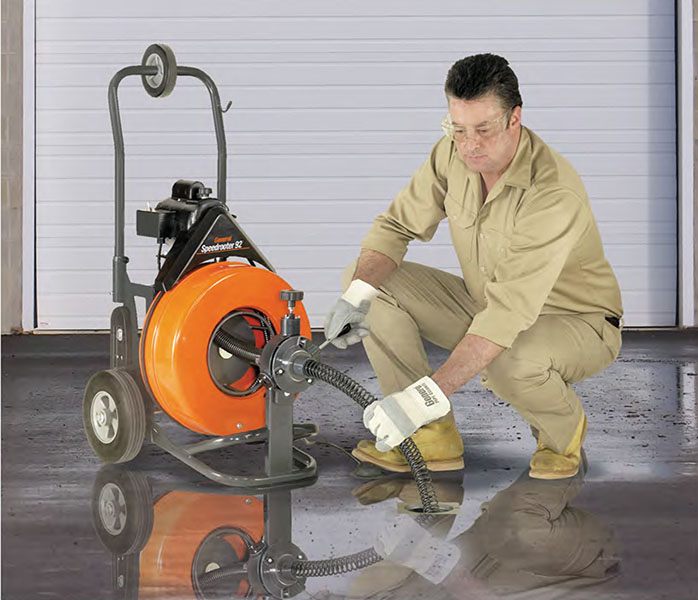

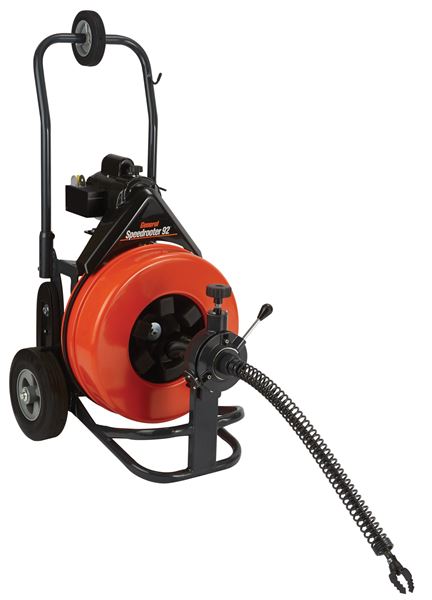

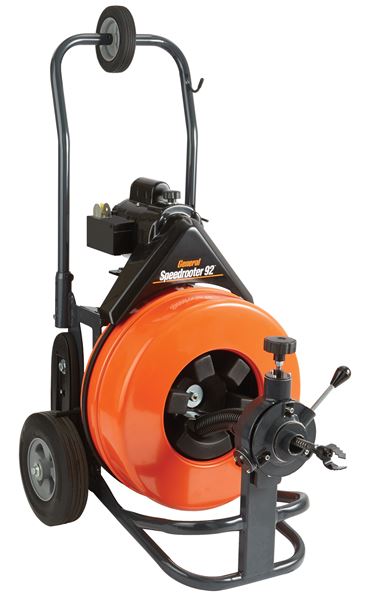

Using two different size drums, one with 3/4" cable and one with 1/2" cable, the Speedrooter 92 can handle 2" through 10" lines. The power cable feed takes most of the muscle work out of drain cleaning because it has the pulling power to get your cable out of the line, even on tough jobs.
Unit of Measure

Specifications

Brands

 N/A Speedrooter

Depth

 N/A 26 in.66 cm

Width

 N/A 22 in.56 cm

Height

 N/A 41 in.104 cm

Drum Capacity

 N/A 100 ft. x 5/8 in. or 3/4 in. (30 m x 15.8 or 19 mm) Flexicore® Cable 100 ft. x 9/16 in. (30 m x 14.2 mm) Flexicore® Cable

Drum Removal

 N/A Loosen two knobs, remove ringbolt and lift off.

Motor Power

 N/A 1/2 hp

Motor Features

 N/A Capacitor start, overload protection, and forward-off-reverse switch.

Load Speed

 N/A 170 rpm

Weight without Cable

 N/A 115 lb52 kg

Wheels

 N/A 10 in. semi-pneumatic heavy-duty with ball bearings. Brake locks wheels during operation.

Foot Switch

 N/A Pneumatic, with no electrical contact between pedal and motor.

Leather Gloves

 N/A With double-reinforced palm, for hand protection when guiding cable.

Tool Box

 N/A Attached to rear of machine.

Industry Standards

 N/A CSA Approved UL Listed

Power Cord

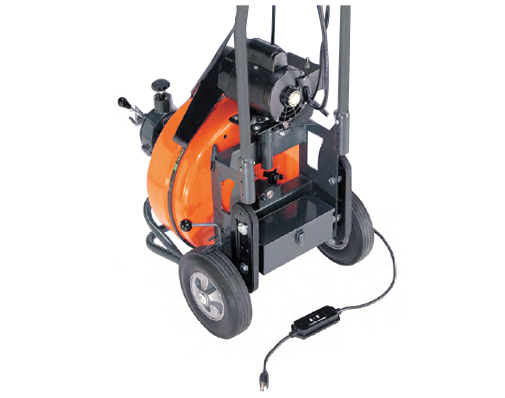

 N/A 20 ft. power cord and ground fault circuit interrupter.

Interchangeable Drums

 N/A A smaller V-belt is required to drive smaller drum and is standard equipment with PS92-A.

Available Cutter Heads

 N/A 1-1/2 in. U-Cutter 2 in. Side Cutter Blades Arrow Head Boring Gimlet

Cables

 N/A 3/4 in. diameter for 4 in. to 10 in. lines and 3 in. lines without sharp bends; 5/8 in. diameter for 3 in. to 6 in. lines; 1/2 in. diameter for 3 in. to 4 in. lines. (Not for roots.)

Truck Loading Wheel

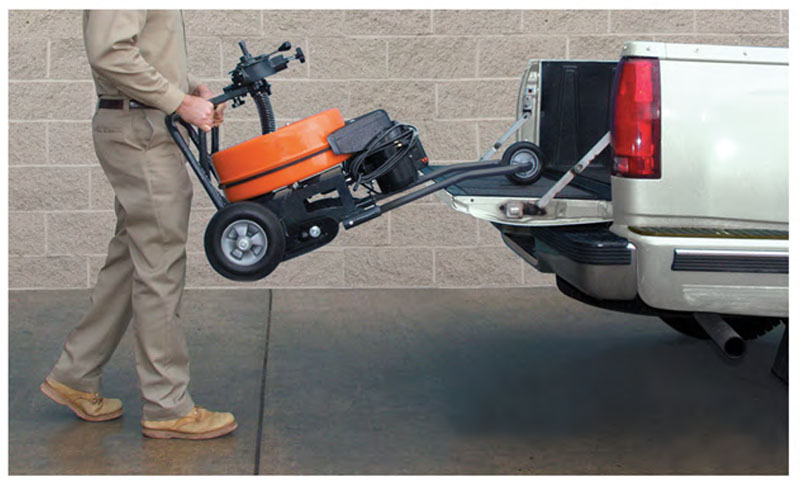

N/A One person can easily load the machine onto the truck.

Stair Climbers

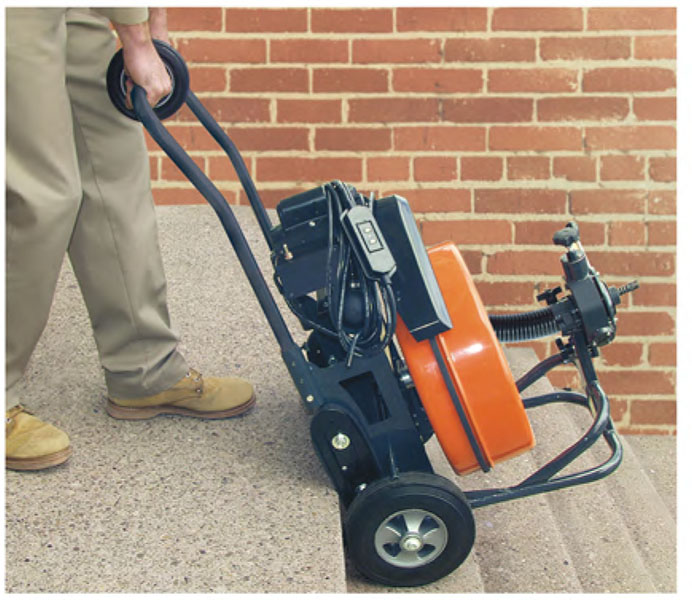

N/A V-Belt and stair climbers let you take the Speedrooter up a flight of stairs yourself.

V-belts running on nylon rollers.

Power Cable Feed

N/A Drives or retracts cable with variable speed at up to 20 ft./min. without having to reverse motor rotation.

Portability, Convenience, and Safety

N/A Equipped with ten-inch wheels, stair climbers, tool box, and ground fault circuit interrupter.

Additional Information

N/A The Speedrooter 92®'s field tested design offers easy handling. One person can easily load it onto a truck, as the machine slides smoothly from the loading wheel to the handle to the stair climbers and finally to the wheels. The adjustable height handle can be reset to be three inches longer, or more compact, depending upon your preference.

With the driving and pulling power for long, tough jobs, General's Power Cable Feed easily handles 3/4 in., 5/8 in., and 1/2 in. cables. To adjust to different cable sizes, simply turn the knob on top of the feed.

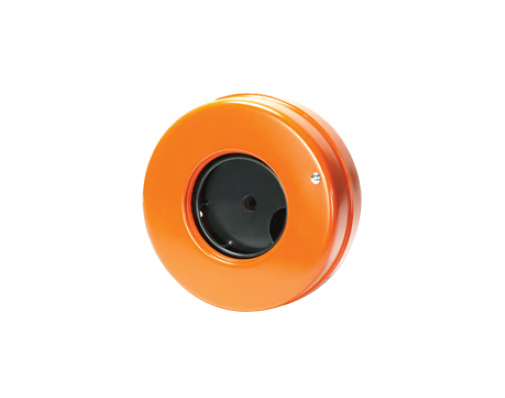

A large drum holds 100 feet of 3/4 in. or 5/8 in. Flexicore® cable. For smaller lines, you can switch to a small drum that holds 100 feet of 1/2 in. cable. Both drums have a see-through inner cage, so you can quickly see how much cable is left in the drum.
