It's Simply...Easier

We've Simplified Locating with the Gen-Eye® Hot-Spot® Locator.

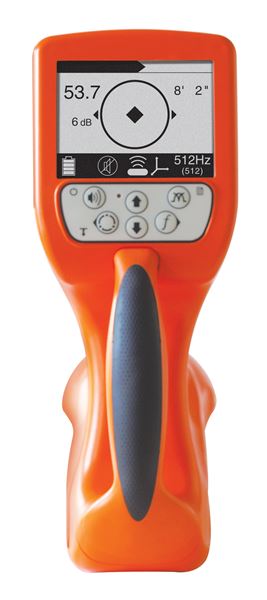

The new Gen-Eye® Hot-Spot® pipe locator makes locating easier than ever. Its total field antenna array and on-screen icons lead you right to your target, without the long learning curve.

Whether you're an experienced pro or a first time user, you can quickly locate inspection cameras, sondes, active power lines and utility lines with pinpoint accuracy. No need to interpret numbers and bar graphs.
Unit of Measure

Specifications

Brands

 N/A Gen-Eye®

Operating Modes/Frequency - Camera Locator

 N/A 1 kHz8 kHz33 kHz65 kHz

Depth Range in Cast Iron Pipe

 N/A 10 ft.

Depth Range in Clay or Plastic

 N/A 20 ft.

Transmitter Frequency

 N/A 1K Hz33K Hz512 Hz65K Hz8K Hz

Camera/Sonde Frequencies

 N/A 512 Hz33 kHz

Line/Utility Frequencies

 N/A 1 kHz8 kHz33 kHz65 kHz

External Ports

 N/A Mini USB

Weight

 N/A 4.8 lb2.18 kg

Batteries

 N/A 2 D-cell alkaline (Approximately 30 hours of life)

Operating Temperature Range

 N/A -4 to 122 ºF-20 to 50 ºC

Active Power Line Frequencies

 N/A 50 kHz60 kHz150 kHz180 kHz

Screen

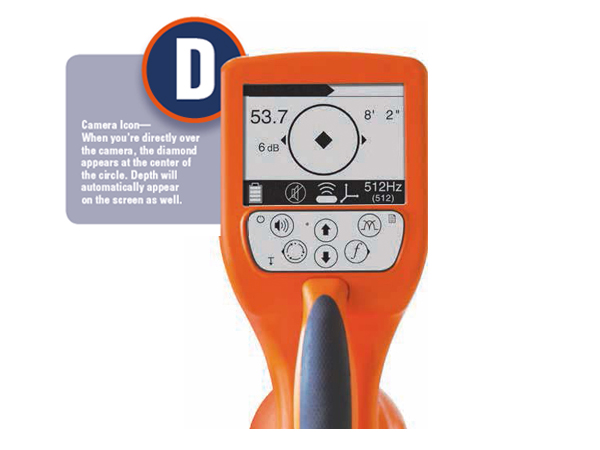

N/A Audible Tone Auto Backlight Auto Digital Depth Battery Status Camera Icon Directional Arrows Graphic Display LCD Digital Signal Read-Out Null Icon Utility Icon

Antenna Configurations

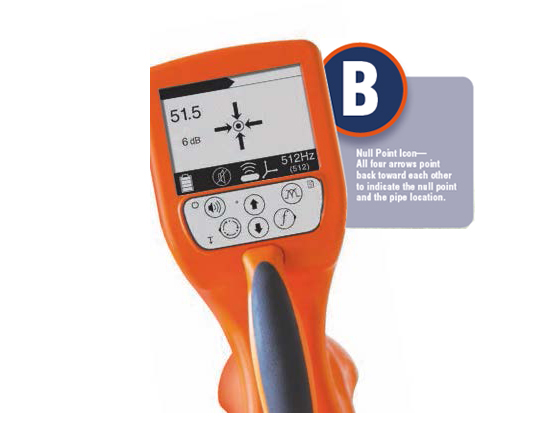

N/A Left/Right (Line Location Only) Null Single Peak Total Field Twin Peak

Features

N/A

  • Easy to read display - Icons lead you to your target. Auto backlight lets you locate in dimly lit areas.
  • Total field antenna array - Allows you to locate from any direction.

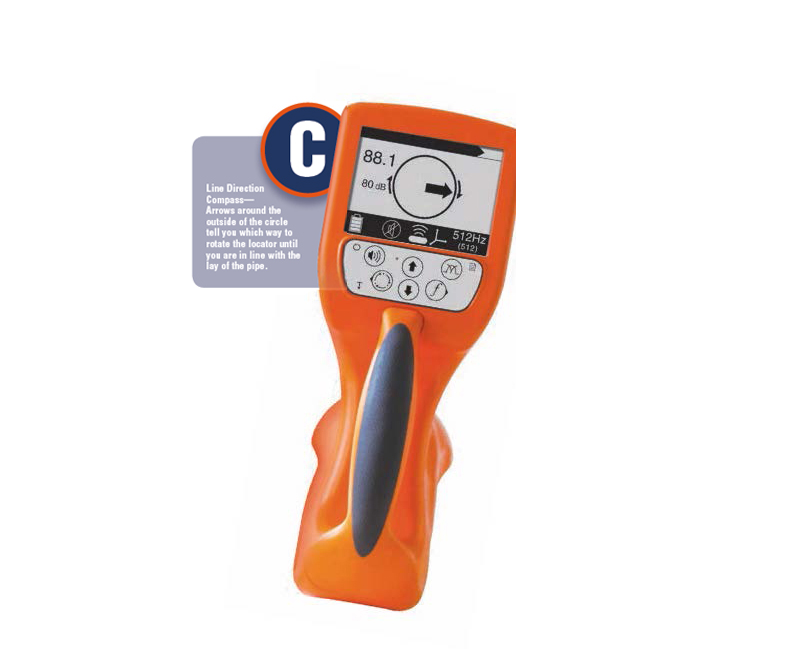

  • Line direction compass - Tells you the lay of the pipe.
  • Industry's most rugged locator - Its IP65 rating is the industry's highest for performing in dusty, dirty or wet jobsite conditions. Passed 1-meter drop test; screen passed 18 in. steel ball drop test.
  • Superior Battery Life - Lasts approximately 30 hours- more than twice as long as others. Automatic shutdown feature saves power.
  • Expanded Frequencies - Locates two sonde frequencies, two power frequencies and four line frequencies (with external transmitter).
  • Upgradeable Software - Use the USB port to upgrade software in the field or for a screen capture.
  • Simple, menu-based user interface - No need for multiple screens. Easy-to-access menus make it easier to use than other locators.

Additional Information

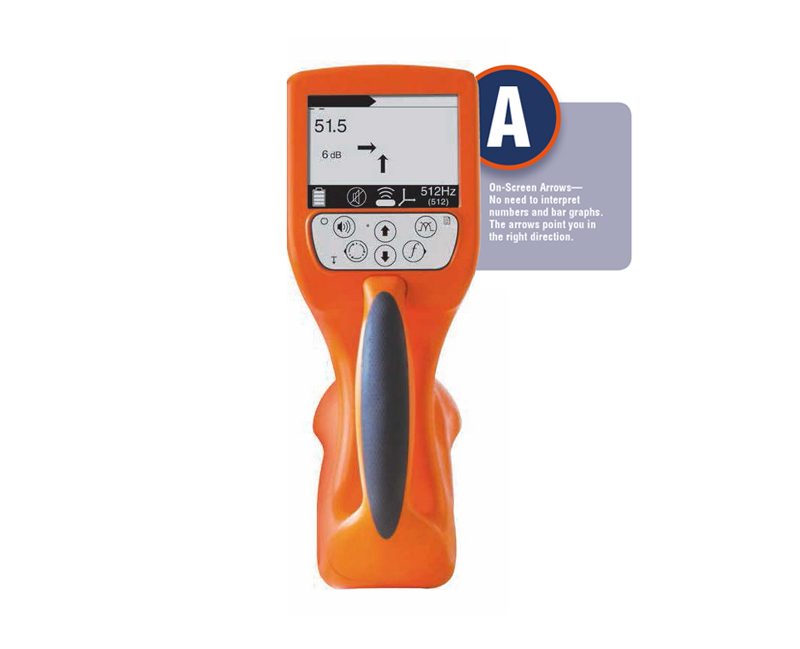

N/A The easy-to-see auto backlit LCD display shows you the way with arrows that point you in the right direction every time. Utility line location and active buried power line locating is just as easy.

The Hot-Spot® is the industry's most rugged locator. Rated at IP65, it is dust and dirt proof, and water resistant. It passed the one meter drop test and the screen passed the 18 in. steel ball drop test.
