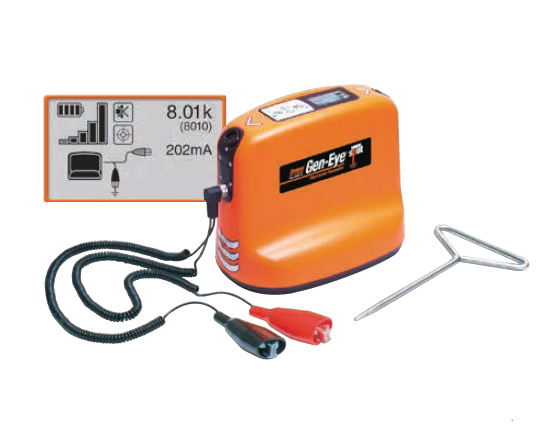

In tandem, the Hot-Spot® locator and this matching Gen-Eye® Hot-Spot® Transmitter finds buried utilities quickly and easily. Like the locator, this transmitter has been designed to take the confusion out of getting the job done.

Locating buried utilities used to be tough. Not anymore! With the powerful 5-watt Hot-Spot® transmitter, location is easier than ever. More power means more signal to locate. Choose one of 4 frequencies - 1 KHz, 8 KHz, 33 KHz or 65 KHz.
Unit of Measure

Specifications

Brands

N/A Gen-Eye®

Transmitter Frequency

N/A 512 Hz1 kHz33 kHz65 kHz8 kHz

Line/Utility Frequencies

N/A 1 kHz8 kHz33 kHz65 kHz

External Ports

N/A Mini USB

Weight

N/A 8 lb3.5 kg

Batteries

N/A 10 D-cell alkaline (Approximately 100 hours of life)

Operating Temperature Range

N/A -4 to 122 ºF-20 to 50 ºC

Output

N/A 5 Watts with 5 output settings

Height

N/A 10 in.25.4 cm

Length

N/A 12 in.30.5 cm

Width

N/A 8 in.19 cm

Note

N/A Also available in a 1-Watt single frequency (65KHz) model.

Antenna Configurations

N/A Left/Right (Line Location Only) Null Single Peak Total Field Twin Peak

Features

N/A

  • More power - powerful 5-Watt output with 5 output levels makes locating utilities easier.
  • Expanded frequencies - locates four line frequencies - 1KHz, 8KHz, 33KHz and 65KHz (65KHz at 1 watt max).
  • Simple, menu-based user interface - No need for multiple screens. Easy-to-access menus make it easier to use than other models.
  • Easy-to-read display - Icons indicate a quality connection and power settings. Auto backlight lets you locate in dimly lit areas.
  • Superior battery life - lasts approximately 100+ hours- more than twice as long as other brands. Automatic shutdown feature saves power.
  • Upgradeable software - Use the USB port to upgrade software in the field or for a screen capture.

Additional Information

N/A The Gen-Eye® Hot-Spot® Locator and Transmitter are so easy to use, you'll find locating to be faster and more productive. That means more profitability for your business.
