With Push Button Depth Finder

Have you ever dug up a flower bed and driveway only to find the problem was somewhere else? Mistakes like these cost time, money, and reputation. And when you find the problem, do you need a shovel - or a backhoe? The Gen-Eye® Locator uses high tech digital technology to tell you exactly where the pipe is and how deep, down to the inch. No time-consuming triangulation required. With the push of a button, you can locate cast iron pipe to a depth of 10 ft., and plastic and clay pipe to 20 ft.
Unit of Measure

Specifications

Brands

 N/A Gen-Eye®

Operating Modes/Frequency - Camera Locator

 N/A 512 Hz33 kHz

Operating Modes/Frequency - Pipe Locator

 N/A 65 kHz

Operating Modes/Frequency - Power Line locator

 N/A 60 Hz

Dynamic Range

 N/A 96 dB

Depth Range in Cast Iron Pipe

 N/A 10 ft.3 m

Locator Weight

 N/A 4.5 lb2 kg

Locator Batteries

 N/A 6 x C (50 hrs. of life at 68 ºF).

Transmitter Frequency

 N/A 1K Hz33K Hz512 Hz65K Hz8K Hz

Depth Range in Polyethylene and Clay Pipe

 N/A 20 ft.6 m

Indicators

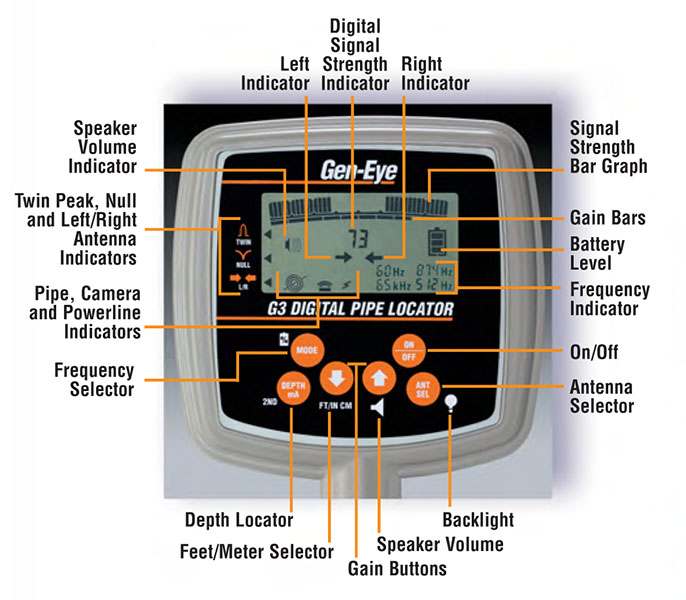

N/A Audible Tone Backlit LCD Digital Display with Signal Strength Read-Out Battery Status Digital Depth Indicator Graphic Display

Additional Information

N/A No guesswork involved

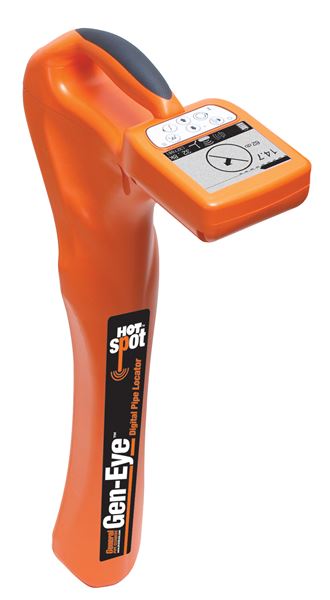

The Gen-Eye® Digital Locator lets you know exactly where the problems are. 100 sensitivity levels let you hone in on the transmitter's signal. The LCD display panel produces a clear digital readout, as well as a graphic display and an audible tone. It's faster and more precise than analog locators.

The Gen-Eye® Locator lets you locate almost anything underground with its built-in four-way signal finder. You can find the Gen-Eye® camera even when it's deep inside cast iron pipe. When you turn on the digital locator, it looks for the 512 Hz signal transmitted from Gen-Eye® cameras.

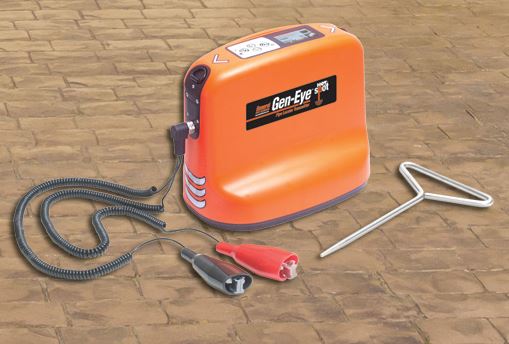

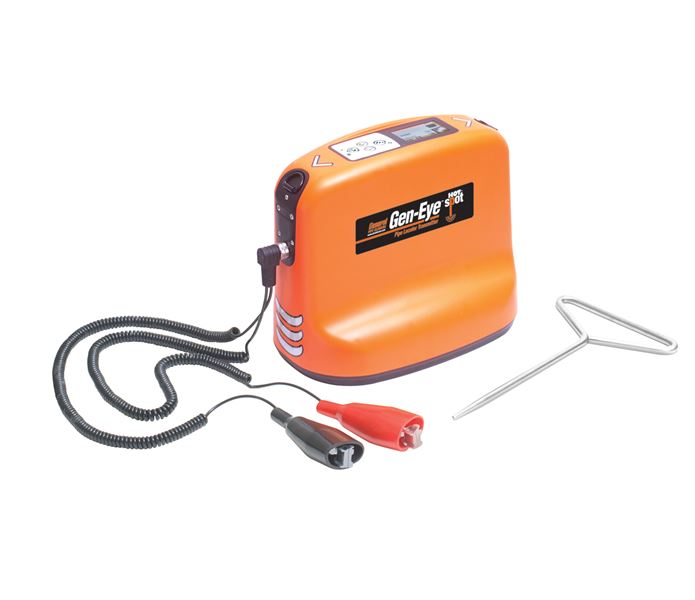

Switch the locator to 60 Hz, and you can locate underground power lines before you start digging. Switch again, and you can locate water lines, gas lines, fiber optic cables, and CATV cables with the optional 65 KHz transmitter. All with more power and dynamic range than any other locator available.
